For Printing Inks
SYAAHEE ORANGE 36D
Technical Data Sheet of Pigment Orange 36 for Printing Inks
Revision No.: 1
Revision Date: 08 / 2017
| Color Index Name | Pigment Orange 36 |
| Color Index Number (C.I No.) | 11780 |
| Chemical Type / Class | Benzimidazolone Pigment |
| CAS No | 12236-62-3 |
| EINECS Number | 235-462-4 |

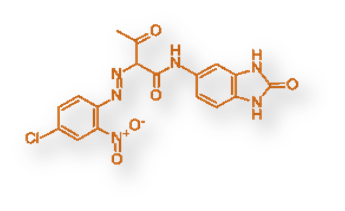

| Molecular Formula | C17H13CIN6O5 |
| Molecular Weight [g/mol] | 416.778 |
| Appearance | Orange Powder |
| Density [gr /cm3] | 1.55 - 1.70 |
| Bulk Volume [ltr /kg] | 2.1 - 3.4 |
| Specific Surface [m2/ gr] | 19 - 32 |
| Oil Absorption [ml/100gr] | 50 - 70 |
| PH of 10% Extract | 5.5 - 7.5 |
| Moisture Content | Max. 1% |
| Acid | 5 |
| Alkali | 5 |
| Water | 5 |
| Butanol | 4.5 |
| Butyl Acetate | 4.5 |
| Xylene | 4.5 |
| MEK | 4 |
| White Spirits | 5 |
| Inks | Recommended |
| Solvent Paints. | Recommended |
| Full Shade | 8 |
| 1:1TiO2 | 7 |
| Full Shade | 5 |
| 1:1TiO2 | 4 |
| Germany BFR recom. IX | Compliant |
| AP 89/1 | Compliant |
| USA (FDA) 21 CFR 178.3297 | Compliant |
| Toys Europe EN 71-03 : 2013 | Compliant |
| Toy USA ASTM F 963-03 | Compliant |
| CONEG, EC 94/62 | Compliant |
| ROHS, 2002/95/E, 2005/618/EC | Compliant |
| End of Life Vehicles, 2000/53/EC, 2002/525/EC | Compliant |
| 15 - 20 KGS Paper Bag |
| Also Packaging avilable as per your Convenience |
| Opaque Orange Pigment with high tinting strength excellent light fastness and weathering properties |
| Novaperm Orange HL / Novaperm Orange HL 70. |
| All ingredients are listed in the following national chemicals Inventories: |
| EINECS [Europe], |
| TSCA [USA], |
| DSL (Canada), |
| AICS [Australia], |
| NZIoC [New Zealand], |
| MITI [Japan], |
| ECL [Korea], |
| IECSC [China], |
| PICCS [Philippines] |
Note: Information given in this technical data sheet is based on current knowledge and our laboratory evaluation; it is presented as per our opinion without any guarantee. Buyers must carry out their own tests and experiments to determine the suitability and completeness of our products for their use and application.
