For Plastic Masterbatch
ZITHILA ORANGE 64K
Technical Data Sheet of Pigment Orange 64 for Plastic Masterbatch
Revision No.: 1
Revision Date: 08 / 2017
| Color Index Name | Pigment Orange 64 |
| Color Index Number (C.I No.) | 12760 |
| Chemical Type / Class | Benzimidazolone Pigment |
| CAS No | 72102-84-2 |
| EINECS Number | 276-344-2 |

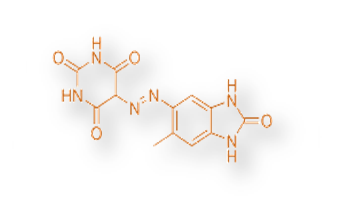

| Molecular Formula | C12H10N6O4 |
| Molecular Weight [g/mol] | 302.25 |
| Appearance | Orange Powder |
| Density [gr /cm3] | 1.6 |
| Bulk Volume [ltr /kg] | 2.5 |
| Specific Surface [m2/ gr] | 23 - 26.5 |
| Oil Absorption [ml/100gr] | 50 - 70 |
| PH of 10% Extract | 5.5 - 7.5 |
| Moisture Content | Max. 1% |
| Acid | 5 |
| Alkali | 5 |
| Water | 5 |
| Butanol | 4.5 |
| Butyl Acetate | 4.5 |
| Xylene | 4.5 |
| MEK | 4 |
| White Spirits | 4 |
| Full Shade | 8 |
| 1:1TiO2 | 7 |
| PE | Recommended |
| PP | Recommended |
| PVC | Recommended |
| PS | Recommended |
| PMMA | Recommended |
| PC | Recommended |
| PET | Recommended |
| ABS | Recommended |
| PA | Recommended |
| POM | Recommended |
| RUBBER | Recommended |
| Water Based Paints | Recommended |
| Coatings | Recommended |
| Inks | Recommended |
| Full Shade | 5 |
| 1:1TiO2 | 4.5 |
| 15 - 20 KGS Paper Bag |
| Also Packaging avilable as per your Convenience |
| Germany BFR recom. IX | Compliant |
| AP 89/1 | Compliant |
| USA (FDA) 21 CFR 178.3297 | Compliant |
| Toys Europe EN 71-03 : 2013 | Compliant |
| Toy USA ASTM F 963-03 | Compliant |
| CONEG, EC 94/62 | Compliant |
| ROHS, 2002/95/E, 2005/618/EC | Compliant |
| End of Life Vehicles, 2000/53/EC, 2002/525/EC | Compliant |
| Opaque mid Red shade Orange, High heat stability and controlled Halogens. |
| Cromophtal Orange K2960 |
| PV Fast Orange H2GL-LHC, SudapermTM Orange 2918 |
| DCC Orange 7064 / OR06401 |
| All ingredients are listed in the following national chemicals Inventories: |
| EINECS [Europe], |
| TSCA [USA], |
| DSL (Canada), |
| AICS [Australia], |
| NZIoC [New Zealand], |
| MITI [Japan], |
| ECL [Korea], |
| IECSC [China], |
| PICCS [Philippines] |
Note: Information given in this technical data sheet is based on current knowledge and our laboratory evaluation; it is presented as per our opinion without any guarantee. Buyers must carry out their own tests and experiments to determine the suitability and completeness of our products for their use and application.
