Bis-Benzene Sulfonylimide with the CAS number 2618-96-4 under the brand name Malpanol NBBIS. We manufacture and export this product brightening additives for electroplating in bright nickel plating baths. Its similar names are Dibenzolsulfimid; DIPHENYLSULFONIMIDE; BIS-BENZENE SULFONIMIDE.
Bis-Benzene Sulfonylimide
Technical Data Sheet of Bis-Benzene Sulfonylimide
Revision No.: 1
Revision Date: 11 / 2018
| Product Name | Bis-Benzene Sulfonylimide |
| Trade Name | NBBIS |

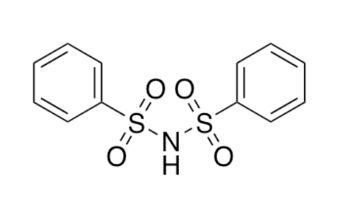

| Molecular Formula | C12H11NO4S2 |
| Molecular Weight | 297.35g/mol |
| CAS No | 2618-96-4 |
* It is used in additives for Nickel electroplating for improving ductility, tolerance to impurities and brightness.
Synonyms
Bis(phenylsulfonyl)amine; Solar BBIS; Malpanol NBBIS; Bis(benzene sulphonyl)imide; Diphenylsulfonimide; DIBENZENESULFIMIDE; Dibenzenesulfonamide; BBI; N-(phenylsulfonyl)benzenesulfonamide; BIS(PHENYLSULFONYL)AMINE; BBSI; dibenzene sulfonimide; DibenzenesulfoniMide; bis(phenylsulfonyl)imine; Dibenzolsulfimide; Dibenzolsulfimid; DIPHENYLSULFONIMIDE; BIS-BENZENE SULFONIMIDE; CAS 2618-96-4.

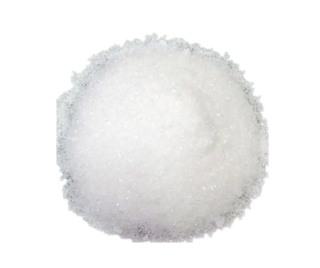

| Appearance | White crystal solid |
| Odour | Product specific |
| Purity | 98% |
| Density | 1.418g/cm3 |
| PH value | Data not available |
| Boiling Point | 480.60ºC |
| Melting Point | 150-155ºC |
| Flash Point | 244.5ºC |
| Refractive Index | Data not available |
| Solubility | Slightly soluble in water, well soluble in alkaline solution. |
| Stability | Stable under recommended storage conditions. |
| Bis-Benzene Sulfonylimide is used as a primary brightener in nickel baths at a concentration of 50-500ml/L. |
| As a plating intermediate, Bis-Benzene Sulfonylimide can use as additive for nickel plating bath; it can soften and brighten the plated hardware. |
| Bis-Benzene Sulfonylimide can also use as pharmaceutical intermediate. |
| It is used in additives for Nickel plating for improving ductility, tolerance to impurities and brightness. |
| In electroplating, it is used as primary brightener instead of saccharin; it has better leveling ability and less consumption than saccharin. |
| Store in cool place. Keep container tightly closed in a dry and well-ventilated place. |
| Plastic bag with fibers drum packaging (we can package depending upon customer requirements, e.g. 25, 50 or 200kg). |
Note: Information given in this technical data sheet is based on current knowledge and our laboratory evaluation; it is presented as per our opinion without any guarantee. Buyers must carry out their own tests and experiments to determine the suitability and completeness of our products for their use and application.
